7 SplitPlot Designs
In this chapter we are going to learn something about experimental designs that contain experimental units of different sizes, with different randomizations. These socalled splitplot designs are maybe the most misunderstood designs in practice; therefore, they are often analyzed in a wrong way. Unfortunately, splitplot designs are very common, although they are not always conducted on purpose or consciously. The good message is that once you know how to detect these designs, the analysis is straightforward, we just have to add the proper random effects to the model.
7.1 Introduction
We start with a fictional example. Farmer John has eight different plots of land. He randomizes and applies two fertilization schemes, control and new, in a balanced way to the eight plots. In addition, each plot is divided into four subplots. In each plot, four different strawberry varieties are randomized to the subplots. John is interested in the effect of fertilization scheme and strawberry variety on fruit mass. Per subplot, he records the fruit mass after a certain amount of time. This means we have a total of \(8 \cdot 4 = 32\) observations.
The design is outlined in Table 7.1. There, the eight plots appear in the different columns. The fertilization scheme is denoted by control (ctrl) and new and as shaded text. A subplot is denoted by an individual cell in a column. Strawberry varieties are labelled using \(A\) to \(D\). In the actual layout, the eight plots were not located sidebyside.
We first read the data and check the structure.
book.url < "http://stat.ethz.ch/~meier/teaching/bookanova"
john < readRDS(url(file.path(book.url, "data/john.rds")))
str(john)
## 'data.frame': 32 obs. of 4 variables:
## $ plot : Factor w/ 8 levels "1","2","3","4",..: 1 1 1 1 2 2 ...
## $ fertilizer: Factor w/ 2 levels "control","new": 1 1 1 1 1 1 ...
## $ variety : Factor w/ 4 levels "A","B","C","D": 1 2 3 4 1 2 ...
## $ mass : num 8.9 9.5 11.7 15 10.8 11 ...
Information about the two treatment variables can be found in factor fertilizer
, with levels control
and new
, and factor variety
, with levels A
, B
, C
and D
. The response is given by the numerical variable mass
. Here, we also have information about the plot of land in factor plot
, with levels 1
to 8
, which will be useful to better understand the design and for the model specification later on.
If we consider the two treatment factors fertilizer
and variety
, the design looks like a “classical” factorial design at first sight.
xtabs(~ fertilizer + variety, data = john)
## variety
## fertilizer A B C D
## control 4 4 4 4
## new 4 4 4 4
When considering plot
and fertilizer
, we see that for example plot 1
only contains level control
of fertilizer
, while plot 3
only contains level new
. We get the same pattern as in Table 7.1.
xtabs(~ fertilizer + plot, data = john)
## plot
## fertilizer 1 2 3 4 5 6 7 8
## control 4 4 0 4 0 4 0 0
## new 0 0 4 0 4 0 4 4
Note that we can typically not recover the randomization procedure from a dataframe alone. We really need the whole “story”.

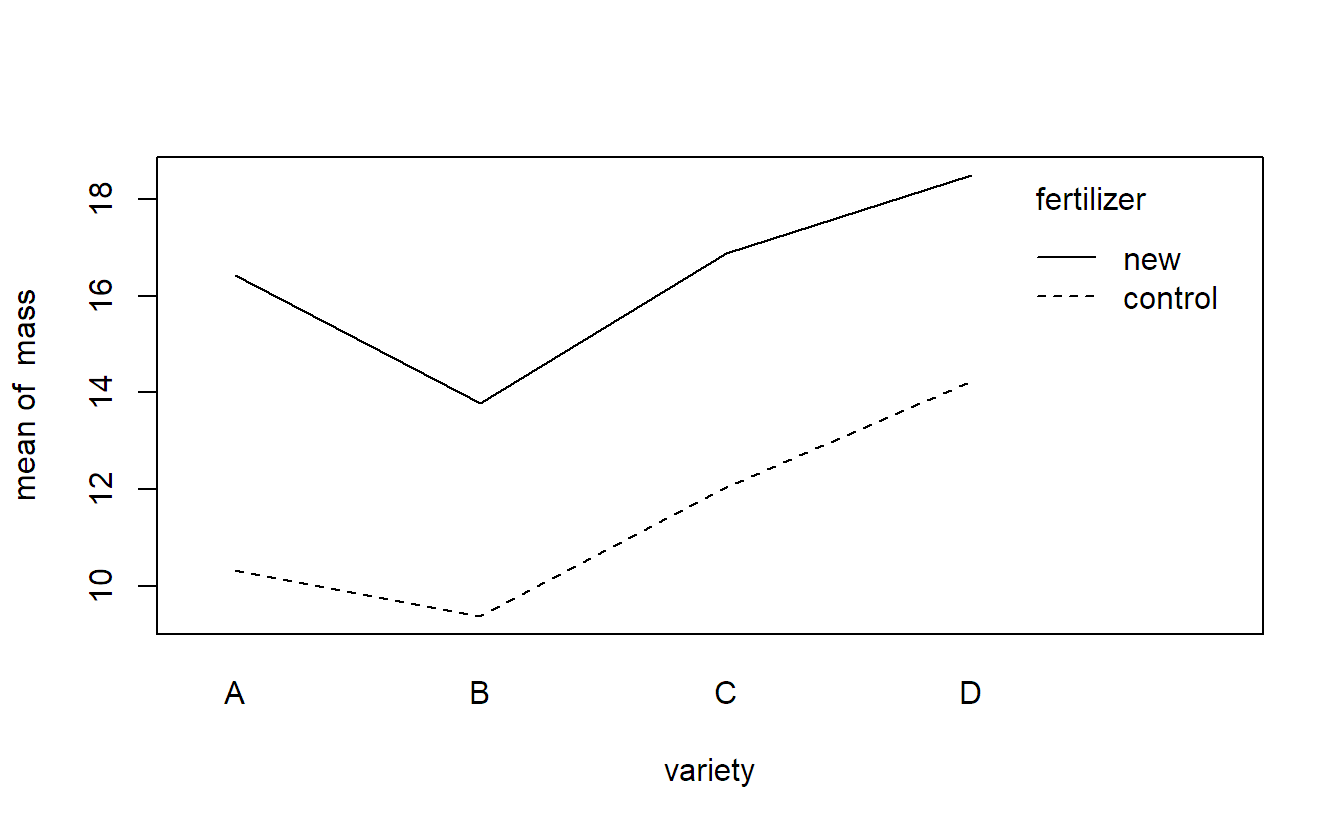

We can visualize the data with an interaction plot which shows that mass is larger on average with the new fertilization scheme. In addition, there seems to be a variety effect. The interaction is not very pronounced (the variety effect seems to be consistent across the two fertilization schemes).
with(john, interaction.plot(x.factor = variety,
trace.factor = fertilizer,
response = mass))
How can we model such data? To set up a correct model, we have to carefully study the randomization protocol that was applied. There were two randomizations involved here:
 fertilization schemes were randomized and applied to plots of land.
 strawberry varieties were randomized and applied to subplots.
Hence, an experimental unit for fertilizer is given by a plot of land, while for strawberry variety, the experimental unit is given by a subplot.
This design is an example of a splitplot design. Fertilization scheme is the socalled wholeplot factor and strawberry variety is the splitplot factor. A wholeplot is given by a plot of land and a splitplot by a subplot of land. For an illustration, see again Table 7.1.
As we have two different sizes of experimental units, we also need two error terms to model the corresponding experimental errors. We need one error term “acting” on the plot level and another one on the subplot level, which is the level of an individual observation. Let \(y_{ijk}\) be the observed mass of the \(k\)th replicate of a plot with fertilization scheme \(i\) and strawberry variety \(j\). We use the model \[
Y_{ijk} = \mu + \alpha_i + \eta_{k(i)} + \beta_j +
(\alpha\beta)_{ij} + \epsilon_{ijk},
\tag{7.1}\] where \(\alpha_i\) is the fixed effect of fertilization scheme, \(\beta_j\) is the fixed effect of strawberry variety and \((\alpha\beta)_{ij}\) is the corresponding interaction term. We call \(\eta_{k(i)}\) the wholeplot error. The nesting notation ensures that we get a wholeplot error per plot of land (you can also think that the combination of fertilization scheme and replicate number identifies a plot). The mathematical notation is a bit cumbersome here, the model specification shown later in R
will be easier. At the end we have \(\epsilon_{ijk}\) which is the socalled splitplot error (the “usual” error term acting on the level of an individual observation). We use the assumptions \[
\eta_{k(i)} \, \textrm{ i.i.d.} \sim N(0, \sigma_{\eta}^2), \quad
\epsilon_{ijk} \, \textrm{ i.i.d.} \sim N(0, \sigma^2),
\] and independence between \(\eta_{k(i)}\) and \(\epsilon_{ijk}\). The first part \[
\alpha_i + \eta_{k(i)}
\] of model formula 7.1 can be thought of as the “reaction” of an individual plot of land on the \(i\)th fertilization scheme. All plot specific properties are included in the wholeplot error \(\eta_{k(i)}\). The fact that all subplots on the same plot share the same wholeplot error has the side effect that observations from the same plot are modeled as correlated data. The following part \[
\beta_j + (\alpha\beta)_{ij} + \epsilon_{ijk}
\] is the “reaction” of the subplot on the \(j\)th variety, including a potential interaction with the \(i\)th fertilization scheme. All subplot specific properties can now be found in the splitplot error \(\epsilon_{ijk}\).
If we only consider fertilization scheme, we do a completely randomized design here, with plots as experimental units. The first part of model formula 7.1 is actually the corresponding model equation of the corresponding oneway ANOVA. On the other hand, if we only consider variety, we could treat the plots as blocks and would have a randomized complete block design on this “level,” including an interaction term; this is what we see in the second part of model formula 7.1.
To fit such a model in R
, we use a mixed model approach. The wholeplot error, acting on plots, can easily be incorporated with (1  plot)
. The splitplot error, acting on the subplot level, is automatically included, as it is on the level of individual observations. Hence, we end up with the following function call.
The \(F\)tests can as usual be obtained with the function anova
.
anova(fit.john)
## Type III Analysis of Variance Table with Satterthwaite's method
## Sum Sq Mean Sq NumDF DenDF F value Pr(>F)
## fertilizer 137.4 137.4 1 6 68.24 0.00017
## variety 96.4 32.1 3 18 15.96 2.6e05
## fertilizer:variety 4.2 1.4 3 18 0.69 0.56951
The interaction is not significant while the two main effects are. Let us have a closer look at the denominator degrees of freedom for a better understanding of the splitplot model. We observe that for the test of the main effect of fertilizer
we only have six denominator degrees of freedom. Why? Because as described above, we basically performed a completely randomized design with eight experimental units (eight plots of land) and a treatment factor having two levels (control
and new
). Hence, the error has \(8  1  1 = 6\) degrees of freedom. Alternatively, we could also argue that we should check whether the variation between different fertilization schemes is larger than the variation between plots getting the same fertilization scheme. The latter is given by the wholeplot error having (only!) \(2 \cdot (4  1) = 6\) degrees of freedom, as it is nested in fertilizer
.
In contrast, variety
(and the interaction fertilizer:variety
) are tested against the “usual error term”: We have a total of 32 observations, leading to 31 degrees of freedom. We use 1 degree of freedom for fertilizer
, 6 for the wholeplot error (see above), 3 for variety
and another 3 for the interaction fertilizer:variety
. Hence, the degrees of freedom that remain for the splitplot error are \(31  1  6  3  3 = 18\). Another way of thinking is that we can interpret the experiment on the splitplot level as a randomized complete block design where we block on the different plots which uses 7 degrees of freedom. Both the main effect of variety
and the interaction effect fertilizer:variety
use another 3 degrees of freedom each such that we arrive at 18 degrees of freedom for the error term.
7.2 Properties of SplitPlot Designs
Why should we use splitplot designs? Typically, splitplot designs are suitable for situations where one of the factors can only be varied on a large scale. For example, fertilizer or irrigation on large plots of land. While “large” was literally large in the previous example, this is not always the case. Let us consider an example with a machine running under different settings using different source material. While it is easy to change the source material, it is much more tedious to change the machine settings. Or machine settings are hard to vary. Hence, we do not want to change them too often. We could think of an experimental design where we change the machine setting and keep using the same setting for different source materials. This means we are not completely randomizing machine setting and source material. This would be another example of a splitplot design where machine settings is the wholeplot factor and source material is the splitplot factor. Using this terminology, the factor which is hard to change will be the wholeplot factor.
The price that we pay for this “laziness” on the wholeplot level is less precision, or less power, for the corresponding main effect because we have much fewer observations on this level. We did not apply the wholeplot treatment very often; therefore, we cannot expect our results to be very precise. This can also be observed in the ANOVA table in Section 7.1. The denominator degrees of freedom of the main effect of fertilizer
(the wholeplot factor) are only 6. Note that the main effect of the splitplot factor and the interaction between the splitplot and the wholeplot factor are not affected by this loss of efficiency. In fact, on the splitplot level, we are doing an efficient experiment as we block on the wholeplots (see also the explanation in Section 7.1).
Splitplot designs can be found quite often in practice. Identifying a splitplot design needs some experience. Often, a splitplot design was not done on purpose and hence the analysis does not take into account the special design structure and is therefore wrong. Typical signs for splitplot designs are:
 Some treatment factor is constant across multiple timepoints, e.g., a whole week, while another changes at each timepoint, e.g., each day.
 Some treatment factor is constant across multiple locations, e.g., a large plot of land, while another changes at each location, e.g., a subplot.
 When planning an experiment: Thoughts like, “It is easier if we do not change these settings too often …”.
If we are not taking into account the special splitplot structure, the results on the wholeplot level will typically be overly optimistic, which means that pvalues are too small, confidence interval are too narrow, etc. (see also the example later in Section 7.3. Again, there is no free lunch, this is the price that we pay for the “laziness.” More information can for example be found in Goos, Langhans, and Vandebroek (2006).
Splitplot designs can of course arise in much more complex situations. We could, for example, extend the original design in the sense that we do a randomized complete block design or some factorial treatment structure on the wholeplot level. If we have more than two factors, we could also do a socalled splitsplitplot design having one additional “layer,” meaning that we would have three sizes of experimental units: whole plots, split plots and splitsplit plots. To specify the correct model, we simply have to inspect the randomization protocol. For every size of experimental unit we use a random effect as error term to model the corresponding experimental error. From a technical point of view, it is often helpful to define “helper variables” which define the corresponding experimental units. For example, we could have an extra variable PlotID
which enumerates the different plots, as was the case with the original example in Section 7.1. A whole book about splitplot and related designs is Federer and King (2007). A discussion about efficiency considerations can for example be found in Jones and Nachtsheim (2009).
We conclude with an additional example.
7.3 A More Complex Example in Detail: Oat Varieties
To illustrate a more complex example, we consider the data set oats
from the package MASS
(Venables and Ripley 2002). We actually already saw an aggregated version of this data set in Section 5.2.
## 'data.frame': 72 obs. of 4 variables:
## $ B: Factor w/ 6 levels "I","II","III",..: 1 1 1 1 1 1 ...
## $ V: Factor w/ 3 levels "Golden.rain",..: 3 3 3 3 1 1 ...
## $ N: Factor w/ 4 levels "0.0cwt","0.2cwt",..: 1 2 3 4 1 2 ...
## $ Y: int 111 130 157 174 117 114 ...
The description in the help page (see ?oats
) is, “The yield of oats from a splitplot field trial using three varieties and four levels of manurial treatment. The experiment was laid out in 6 blocks of 3 main plots, each split into 4 subplots. The varieties were applied to the main plots and the manurial treatments to the subplots.” This means compared to Section 5.2, we now have an additional factor N
which gives us information about the nitrogen (manurial) treatment. In Section 5.2 we simply used the average values across all nitrogen treatments as the response.
A visualization of the design for the first block can be found in Table 7.2. The wholeplot factor V
(variety) is randomized and applied to plots (columns in Table 7.2), the splitplot factor N
(nitrogen) is randomized and applied to subplots in each plot (cells within the same column in Table 7.2). See also Yates (1935) for a more detailed description of the actual layout (which was in fact a 2by2 layout for the subplots).
Block I

Golden.rain  Marvellous  Victory
0.6 cwt  0.0 cwt  0.0 cwt
0.2 cwt  0.6 cwt  0.4 cwt
0.4 cwt  0.2 cwt  0.2 cwt
0.0 cwt  0.4 cwt  0.6 cwt
Interaction plots for all blocks can be easily produced with the package ggplot2
.
library(ggplot2)
ggplot(aes(x = N, y = Y, group = V, colour = V), data = oats) + geom_line() +
facet_wrap(~ B) + theme_bw()
In Figure 7.1 we can observe that blocks are different (this is why we use them), there is no clear effect of variety (V
), but there seems to be a more or less linear effect of nitrogen (N
).
What model can we set up here? Let us again have a closer look at the randomization scheme that was applied. With respect to variety we have a randomized complete block design. This is the wholeplot level, and we need to include the corresponding wholeplot error (on each plot).
Here, a plot can be identified by the combination of the levels of B
and V
. Hence, the wholeplot error can be written as (1  B:V)
. This leads to the following call of lmer
.
fit.oats < lmer(Y ~ B + V * N + (1  B:V), data = oats)
anova(fit.oats)
## Type III Analysis of Variance Table with Satterthwaite's method
## Sum Sq Mean Sq NumDF DenDF F value Pr(>F)
## B 4675 935 5 10 5.28 0.012
## V 526 263 2 10 1.49 0.272
## N 20021 6674 3 45 37.69 2.5e12
## V:N 322 54 6 45 0.30 0.932
Again, we see that we only get 10 degrees of freedom for the test of variety (V
). In fact, the result is identical with what we got in Section 5.2! This again illustrates the way of thinking when analyzing splitplot designs: Think of averaging away the nitrogen information by taking the sample mean on each plot. With this reduced set of values, perform a classical analysis of a randomized complete block design (this is exactly what we did in Section 5.2). Regarding the splitplot factor: nitrogen (N
) is significant, but the interaction V:N
is not. This confirms the interpretation of Figure 7.1.
What happens if we choose the wrong approach using aov
(without the special error term)?
## Df Sum Sq Mean Sq F value Pr(>F)
## B 5 15875 3175 12.49 4.1e08
## V 2 1786 893 3.51 0.037
## N 3 20020 6673 26.25 1.1e10
## V:N 6 322 54 0.21 0.972
## Residuals 55 13982 254
We get a smaller pvalue for variety (V
), and if we use a significance level of 5%, variety would now be significant! The reason behind this is that aov
thinks that we randomized and applied the different varieties on individual subplots. Hence, the corresponding error estimate is too small and the results are overly optimistic. The model thinks we used 72 experimental units (subplots), whereas in practice we only used 18 (plots) for variety.
